Heaving Sliding Door of depth 105mm

One of the Chinese companies offering Heaving Sliding Door of depth 105mm for wholesale is LEASKY. For you, we can offer better pricing and competent service. Should you be intrigued by Heaving Sliding Door of depth 105mm, kindly get in touch with us. We adhere to the standard of conscience-driven, committed service at the cost of quality assurance.OneWe adhere to the standard of conscience-priced, devoted service, so you can feel secure. Our Heavy Sliding Door of depth 105mm have a good price advantage and cover most of the Asia and Southeast Asia markets. We look forward to becoming your long-term partner in China.

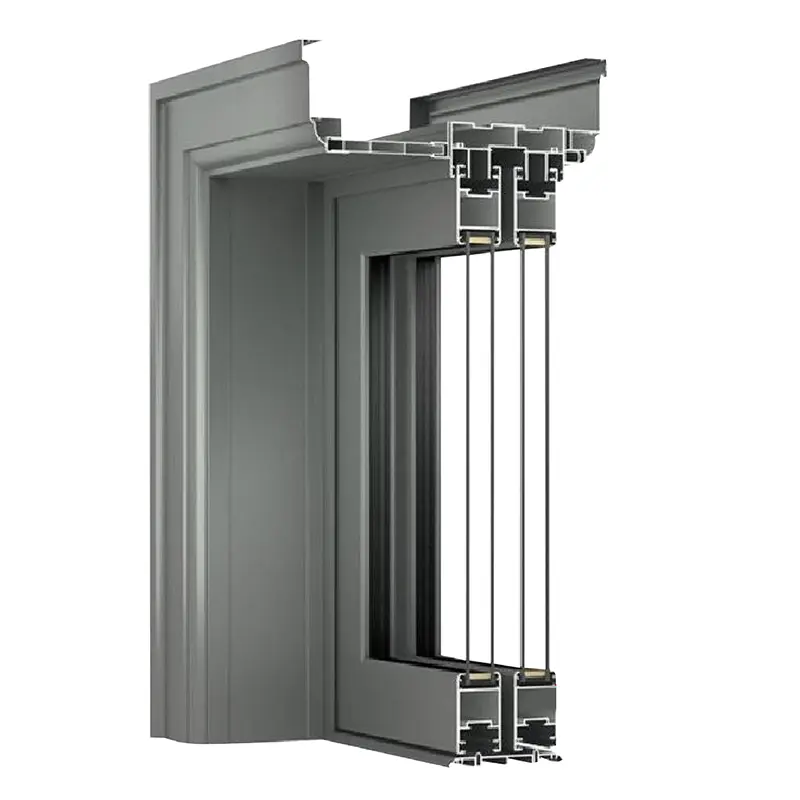

Guohua Construction can provide excellent heat preservation aluminum heaving sliding door with construction depth of 105 mm, which popular using for bedroom, the thickness of Aluminum Profile : 2.0mm, and tempered glass of famous brand "XinYi" .

Product Parameter (Specification)

Thickness of Aluminum Profile: 2.0mm.

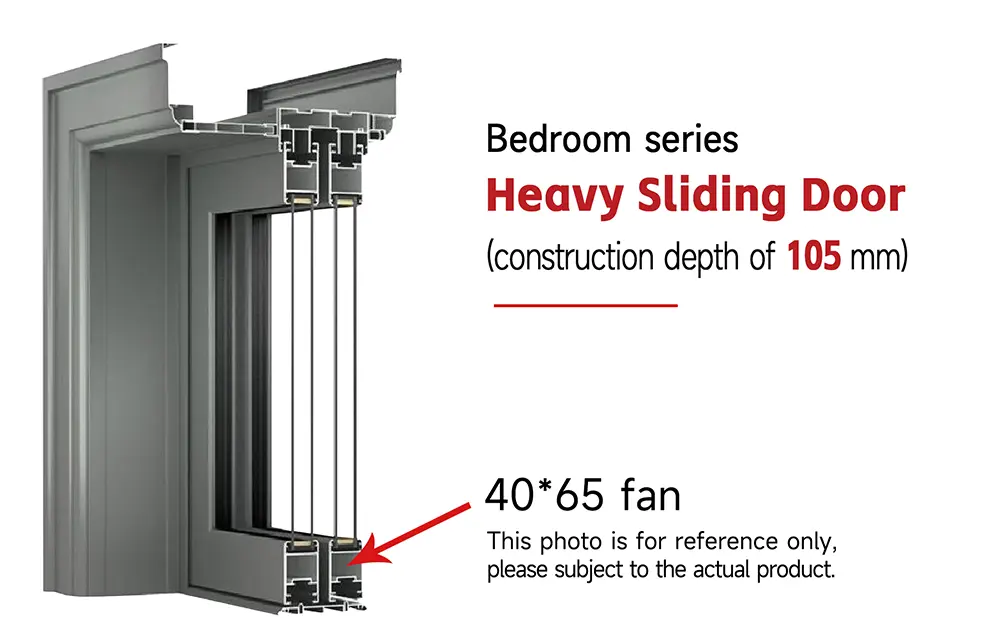

Width of Fan: 40 x 65 mm.

Width of external frame: 2 Tracks close to wall 105mm/3Tracks close to wall 161mm.

Material of Aluminum Profile: Original Aluminum 6063-T5 exceed the national standard.

Glass:Tempered glass of famous brand "XinYi"

Net detail:Jian SUS304 Stainless steel HD net.

Sealing rubber strip:The foam rubber strip of EPDMcompound from JiangYin HaiDa.

Product Feature And Application

1. Integrated bending fluorocarbon black hollow aluminum strip.

2. In order to prevent fogging in the hollow aluminum strip,which filled with moisture-proof molecular sieve.

3. Fashionable style, could be suitable for simple and modern decorative.

4. Elaborately design, excellent materials, could be matched some other tech of white glass,grid strip.

5. The up-side track used of adjustable track which safety stability & anti-swing & anti-fall.

6. Specification of Glass:5mm+15A+5mm

7. Rabbet of Glass:26mm, front view of high-track:43mm

8. Standard configuration:Hidden lock from BOGO

Production Details
